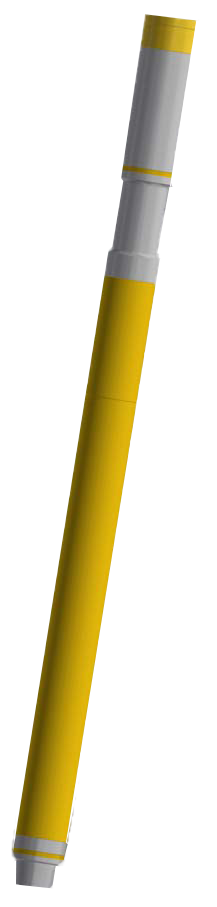

EaZy Drill™
Features
- Coiled tubing // stick pipe milling or cleanout operations
- Coiled tubing // stick pipe fishing operations
- Coiled tubing drilling applications
Benefits
- Reduces friction
- Extends the reach of CT
- Prevents CT buckling
- Rated for up to 5 bpm
- Robust and dependable design
- Built in flex sub
- Ability to pump Beads // Diverter though tool
EaZy Drill™
About This Product
EaZy to Reach TD
The Workover Solutions EaZy Drill is a Friction Reducing Tool that enhances weight transfer and extends coiled tubing reach to achieve TD. The innovative design creates a pressure pulsation which aids in friction reduction as well as provides an axial force in order to increase weight transfer at the bit.
The WOS EaZy Drill can be used on both coiled tubing and stick pipe extended reach applications. The 2.88” EaZy Drill is unique in that it is rated for up to 5 bpm to allow for maximum hole cleaning and features a built in flex sub to help relieve bending stresses. Additional features include the ability to pump both beads and diverter through the tool when needed to further aid in operation.
Product Details
| Tool Size, in | 2.88 | 3.13 |
| Makeup Length, in | 88.2 | 88.5 |
| Flow Rate, bpm | 2.5 – 5.0 | 3.0 – 5.0 |
| Avg. Pressure, psi | 1000 – 1400 | 700 – 1200 |
| Frequency, hz | 2 – 4 | 2 – 5 |
| Weight, lbs | 80.2 | 146 |
| Tensile Yield, lbf | 186,000 | 160,00 |
| Tool Connections | 2-3/8” PAC Box x Pin | 2-3/8” REG Box x Pin |
